Wind Sector: Nacelles

Wind Sector Nacelles in WTG Towers

INITIAL SITUATION

Airpes designed, manufactured, tested and installed a new hydraulic system that allows the beam to move ± 3º in the horizontal axis.

Initial situation description
Difficulty in aligning the nacelle to the tower during installation using current lifting beam.

Need to solve
Modify the current lifting beam to align the nacelle to the tower to improve the installation process.

Wind Sector- Nacelles
AIRPES SOLUTION

Airpes designed, manufactured, tested and installed a new hydraulic system that allows the beam to move ± 3º in the horizontal axis.

The client needed a hydraulic system for the nacelle installation in the tower. The installation process of the tower wouldn’t be complete without this hydraulic system functioning in the right way.

RESULTS
GOALS ACHIEVED
Airpes modified current Nacelle Lifting Beam SWL 490T with a newly designed hydraulic system to allow the alignment of the nacelle to the tower. After testing this hydraulic system in France, a worldwide introduction of the system was made with great success.

OUR on demand solutions

Blade counterweight tool
Rail transfer cars for wind turbine plate roll
Cuban scrap truck
Drivetrain hydraulic lifting beam
Electromagnet beam and AGV car
Electromagnet supply
Handling & weighing equipment
Sailing yacht & motorboat engineering
Handling & Engineering project
Hot bar Manipulator
Lifting equipment for wind turbine blades
60t coil car transfer
Rotator Lifting beams
Transport & lifting system with Atex protection
Automatic tongs

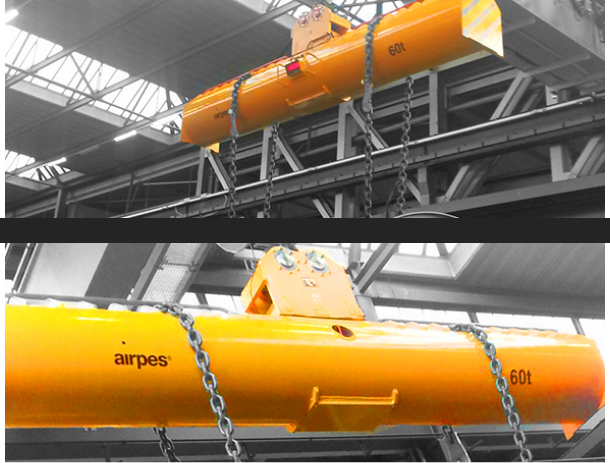

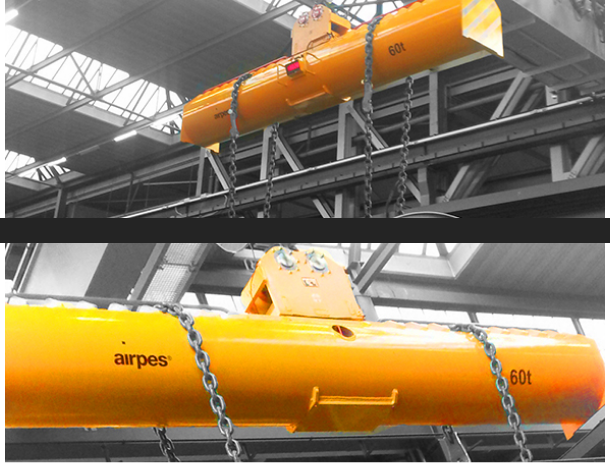

Weighing System Project
