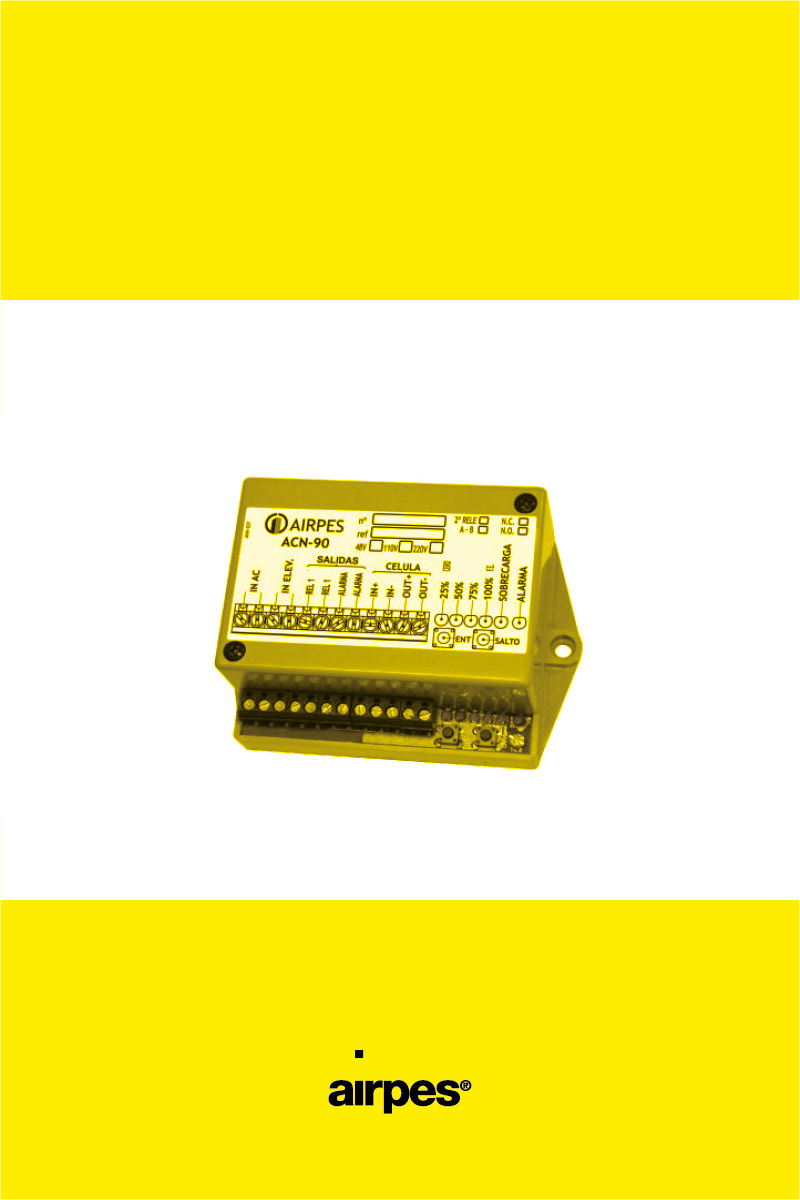

ELECTRONIC BLACK BOX ACN-90

The ACN-90 model of the economic black box has been designed to register the spectrum of loads of elevating devices (hoist), according to the UNE 58 919 normative.

Features of the ACN-90 electronic black box
The ACN-90 model of the economic black box has been designed to register the spectrum of loads of elevating devices (hoist), according to the UNE 58 919 normative.
Apart from the control over the safe working period (SWP) established by the norm, they have several registers for the control of the:
– number of lifting maneuvers
– number of impulse lifting maneuvers
– time of maneuvering of a lifting
– number of surcharges
– number of passed over surcharges
– activation of revision per number of hours or date.
All the data will be visualized in the AMM-40 terminal of configuration (see catalog) protected through a security key. It includes a restrictor for the control of surcharges. Can be connected on whichever weight sensor sited in fixed branch line, return tackle block, cart, cable, etc.
Prepared for systems that do not incorporate a load cells.

General information

The ACN-90 economy black box is designed to recording the load spectrum of lifting equipment (hoists), in accordance with the UNE 58 919 standard.
Safe Operation System “PFS” established by the standard, provides of various records for the control of:
– number of lifting manoeuvres.
– number of impulse lifting manoeuvres.
– time of lifting manoeuvres.
– number of overloads.
– number of bridged overloads.
– activation of revision by number of hours or date

All data will be displayed in the configuration terminal AMM-40 (see catalogue) protected by a security key.
Includes limiter for overload control. Can be connected on any weight sensor located in fixed branch line, pulley
forwarding, trolley, cable, etc.
Prepared for systems that do not incorporate load cells.

Characteristics
– Weight input.
– Lifting input.
– Overload output, changeover contact selectable (N.O. or N.C.)
(6A 250V).
– Alarm output, changeover contact selectable (N.O. or N.C.)
(6A 250V).
– Overload limit hysteresis.
– 2 keys for system calibration at nominal load.
– By means of the AMM-40 portable terminal it is possible to calibrate
with loads different from the nominal one and perform the different
black box configurations.
– Power supply 48V or 110V-220V AC (upon request).
– Temperature -10ºC – 50ºC; Humidity 15% – 85%.
