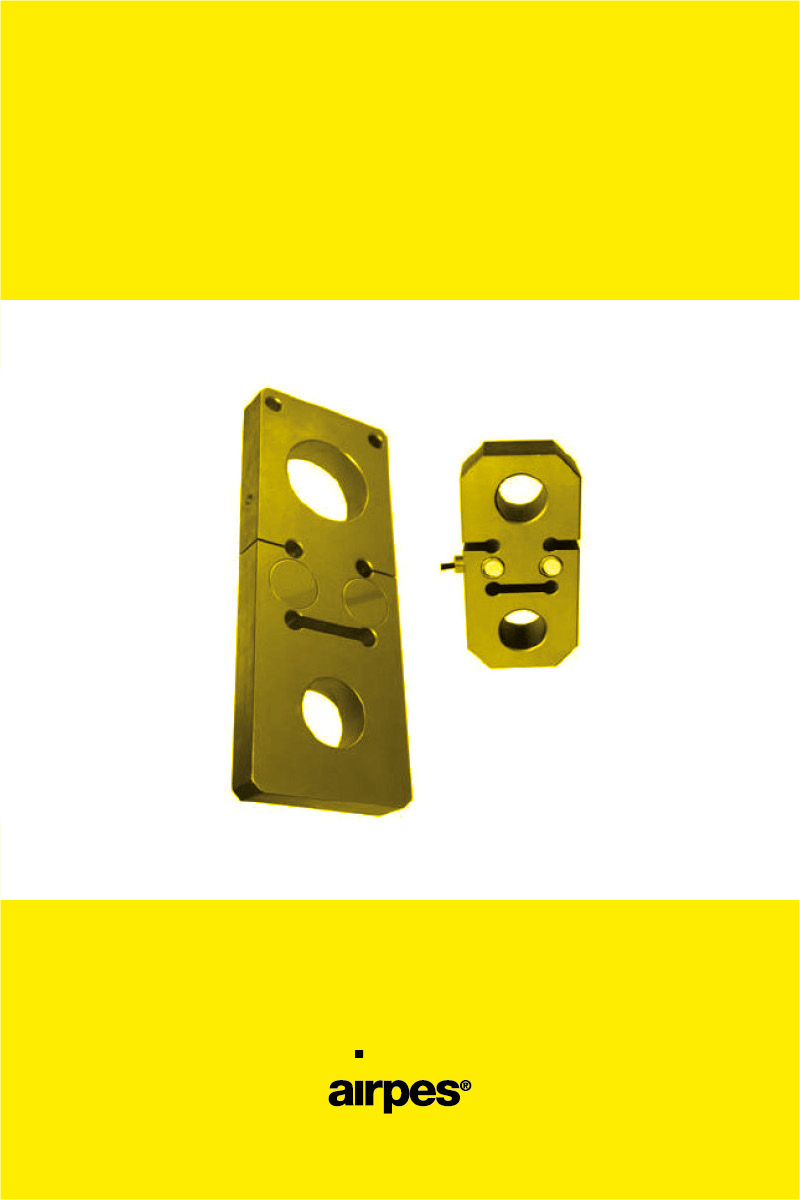

TRACTION LOAD CELLS CT

The CT model of this traction load cells have been specially designed to work with traction with element detecting shear or double shear.

Features of the Airpes’ traction load cells

This weighing system is designed and manufactured in alloy steel and chemically treated anti-corrosive nickel.

3,000 OIML-R60 divisions
Leak-tightness IP-66
Capacities from 750Kg to 50T
Available in stainless steel

Class of precision
C3

Sensitiveness
2 ±0,1%mV/V

Vmin
Emax/10000

Voltage of feeding
5÷15V

Resistance at input
390Ω ó para DC 760Ω

Resistance at output
350Ω ó para DC 700Ω

The compensated margin of temperature
-10ºC to +40ºC

The resistance of insulation:
>5000M

Download technical documentation
