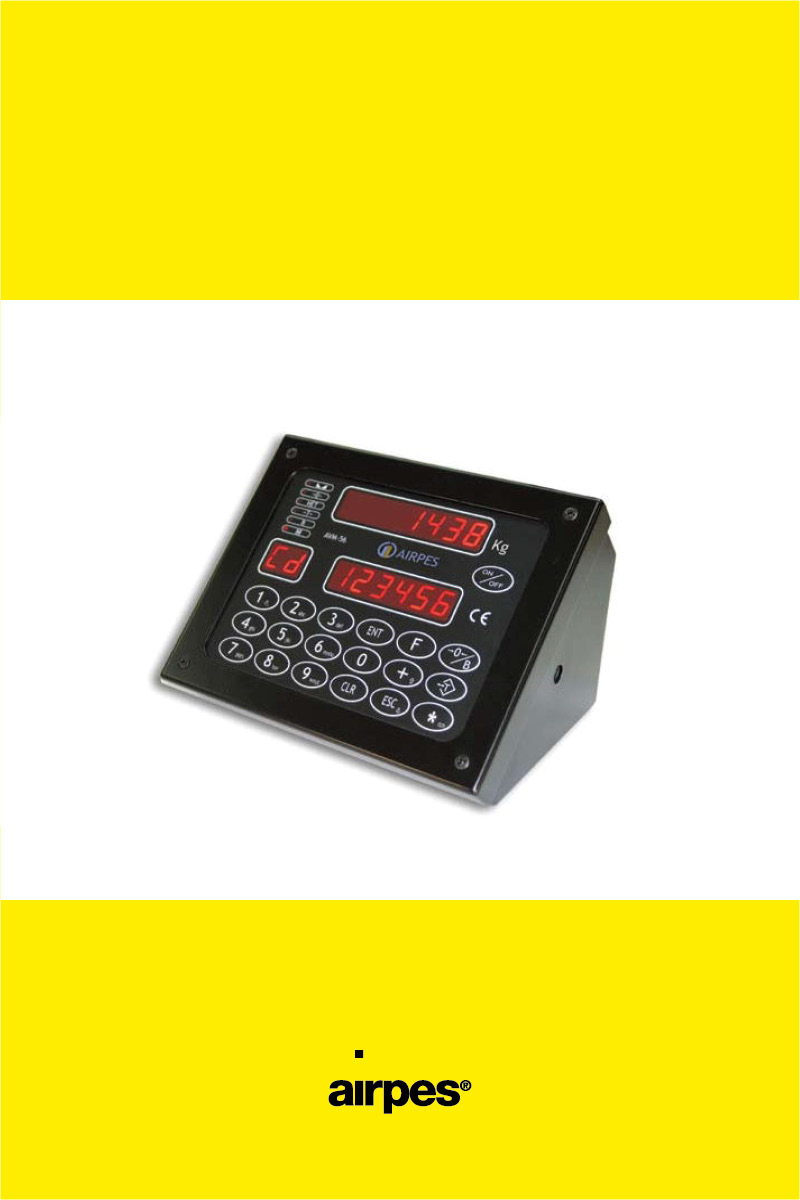

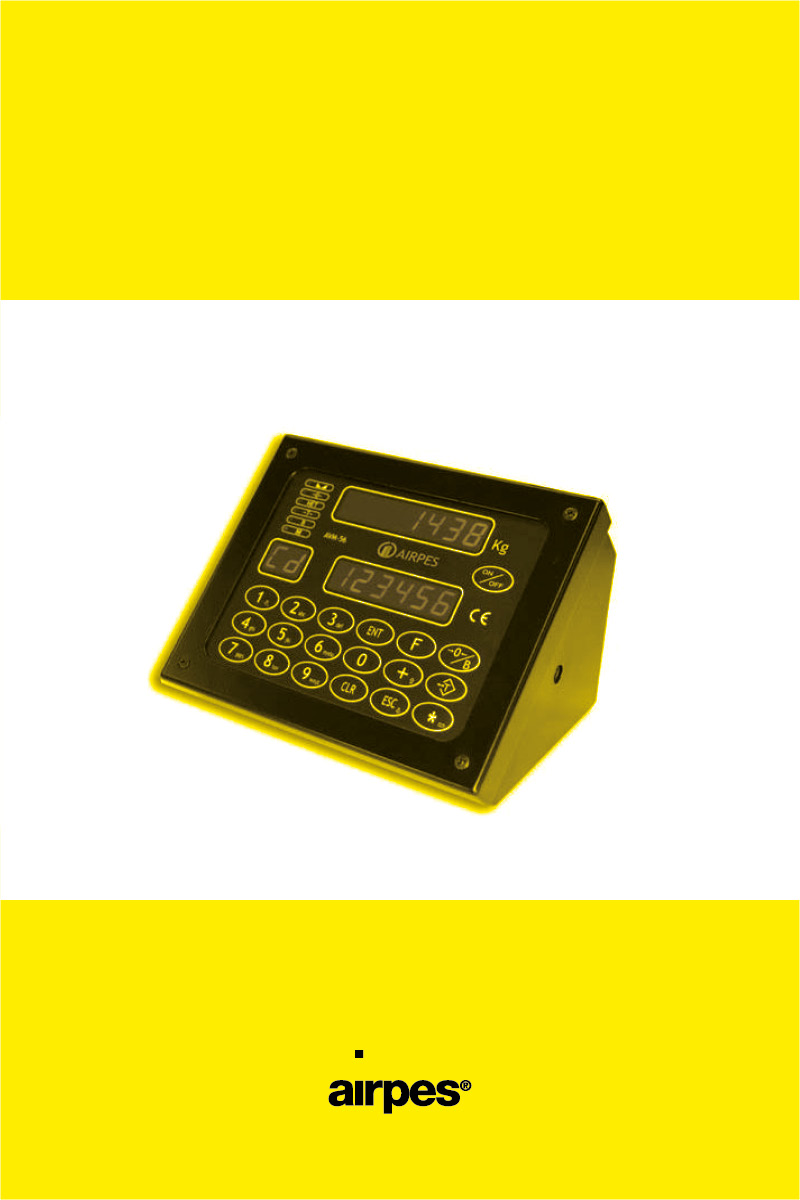

LOAD INDICATOR AVM-56

The AVM-56 model of load indicator has been designed to control any scale, platform, loading cell, or groups of loading cells.

Airpes’ Load Indicator AVM-65 Features
The Load Indicator AVM-65 has a numeric keyboard of 18 keys and 3 LED visors of 0.56” with 6, 2, and 6 digits respectively. With it, you can comfortably control your scale, platform or loading cell and consult its key data.

Optionally it can incorporate output for repeater of weight, RS-232-C, RS-485/422, output for the printer, transmission/reception by radio, limits of a power cut, various inputs and outputs, conversion of alignment of scales, etc.

Benefits of the Load Indicator AVM-65

  • 1 entry of scale or loading cell
  • Memorization of codes
  • Conversor of alignment of scales
  • Option inputs/outputs (limiter, doser, etc.)
  • Option RS-232-C
  • Option RS-485/422
  • Option control maximum Peak
  • Option piece counter
  • Option support for fixation on wall or ceiling

Feeding

110V or 220V AC (optionally fed with internal battery)

Temperature

-10ºC +50ºC

Humidity

15% – 85%

Download technical documentation
