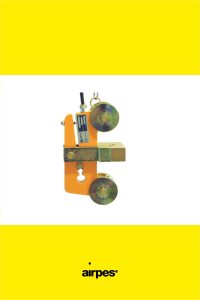

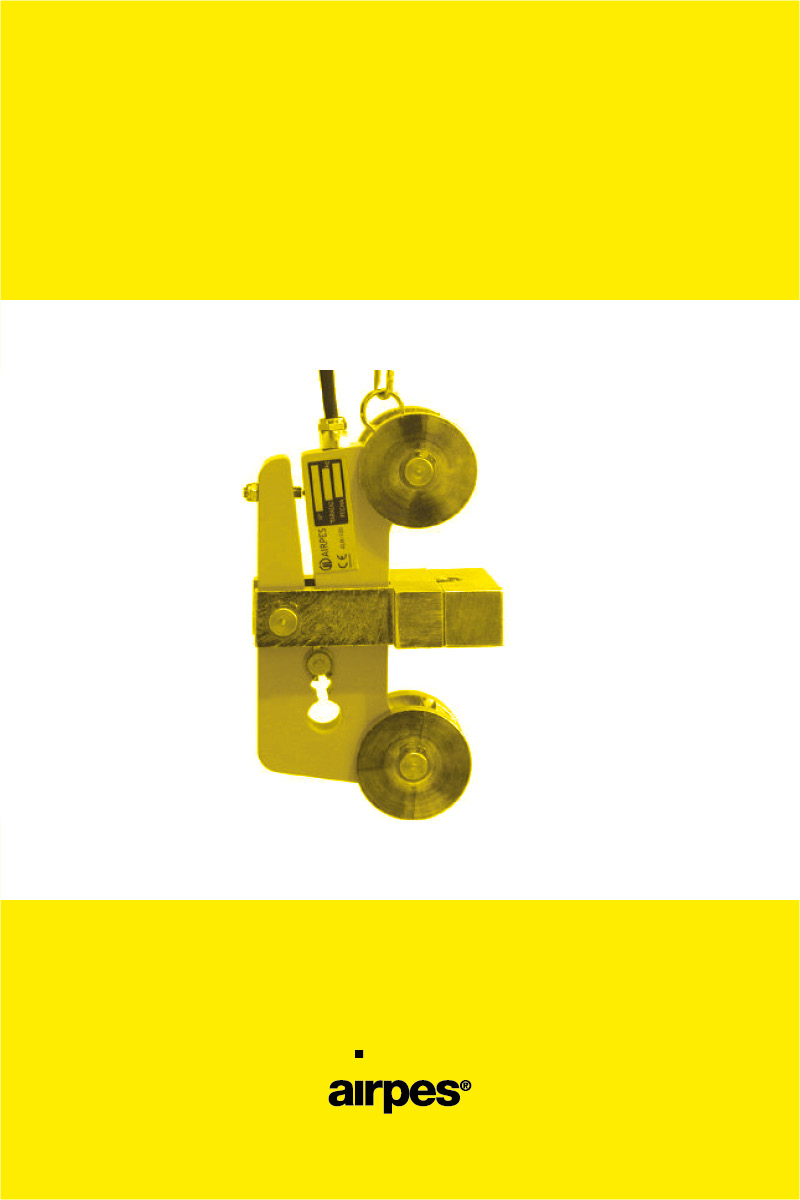

Mechanical load limiter ALM/M-100


The mechanical load limiter model ALM/M-100 has been designed to control the overload in elevation devices like cranes, overhead travelling cranes, hoists, elevators, etc.


Features of the ALM/M-100 Mechanical load limiter

  • Micro switch: 4A 250V AC
  • Work temperature: -30ºC +60ºC
  • Capacity: 250 Kg to 8,500 Kg
  • Fracture coefficient: 500%
  • Protection: Ip67 (prepared to work outside)
  • Cable diameter: 5mm to 31 mm
  • Precision: + / – 1%


This load limiter is delivered at the desired tare, in order to facilitate the mounting of the technical services.

If you need to control the overload in devices like overhead travelling cranes, elevators or hoists, you need a mechanical load limiter. Contact us for further information.
