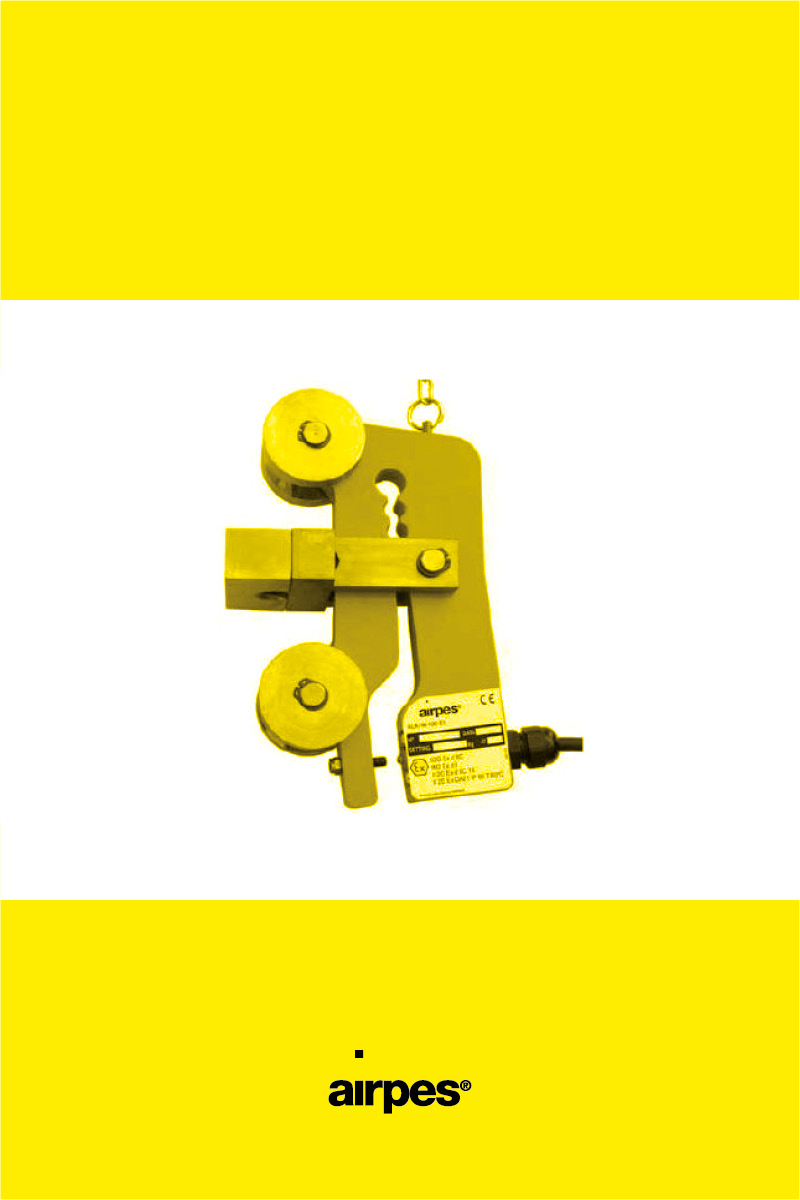

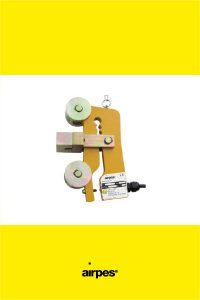

ALM/M-100 EX MECHANICAL LOAD LIMITER

The mechanical load limiter model ALM/M-100 EX has been designed to control the overload in elevation devices like cranes, overhead traveling cranes, hoists, elevators, etc.

Airpes’ ALM/M-100 EX Mechanical Load Limiter Features

This weighing system and mechanical load limiter are specifically indicated to be used next to locations:

II 2G Ex d IIC T6
II 2D T 80ºC Ip66 T 80ºC

According to the standards:

EN 60947-5-1
EN 60947-1

Certifications of the ALM/M-100 EX Mechanical load limiter:

PTB 98 ATEX 1032 U
IECEx PTB 07.0040 U
PTB 00 ATEX 1093 X
IBEx U01ATEX 1007 X
IECEx PTB 07.00 45 X

Benefits of the ALM/M-100 EX Mechanical load limiter
Microswitch: 4A 250V AC

Work temperature
-30ºC +75ºC

Capacity
250 Kg to 8,500 Kg

Fracture coefficient
500%

Protection
Ip66

Cable diameter
5 mm to 32 mm

Precision
+ / – 1%

Download technical documentation
