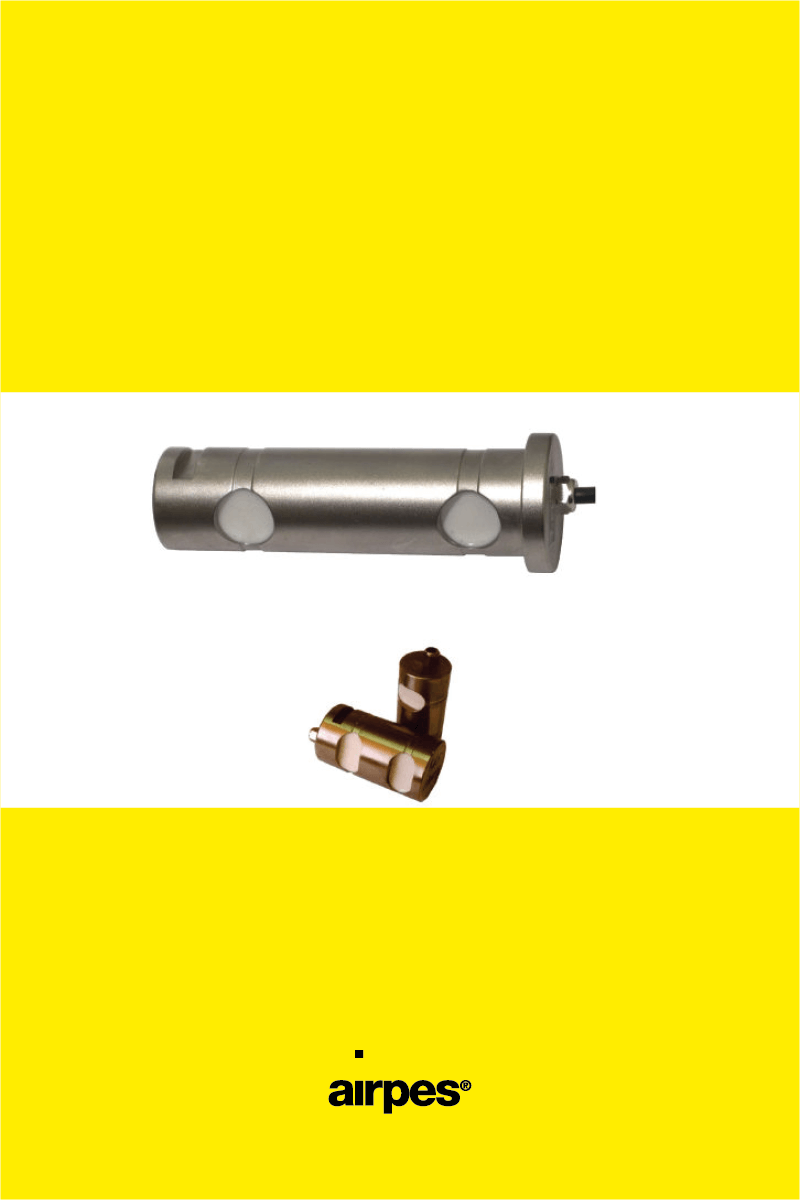

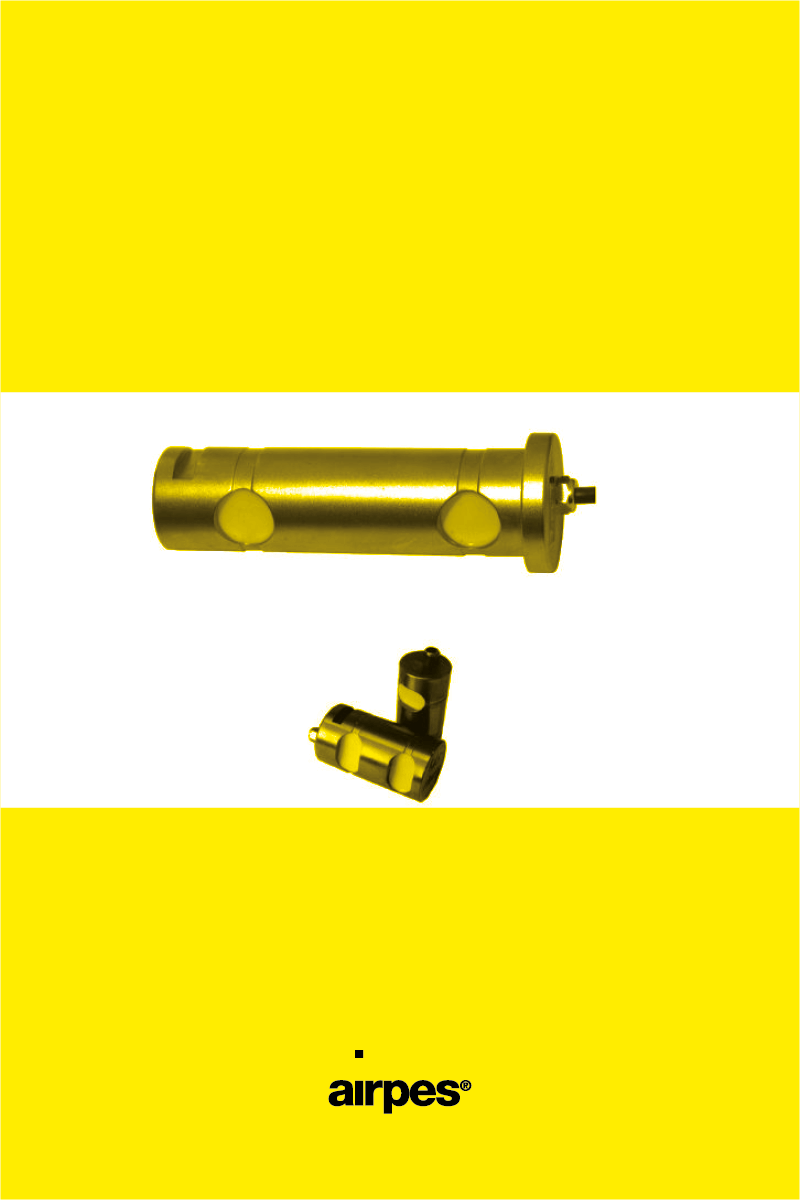

Spring pin load cell BL


The BL model of load cells have been specially designed to work with traction or compression with element detecting a double shear.


Features of Airpes’ Spring pin load cell BL

  • Its most generalized application is dedicated to pulleys, as system of limitation, or weighing.
  • Construction in alloy steel and chemically treated anticorrosive nickel.
  • Leak-tightness IP-67
  • Capacities from 500Kg to 100T
  • The spring pin load cell is available in stainless steel


Benefits of the spring pin load cell BL

  • Sensitiveness: 2±0,1%mV/V
  • Vmin: Emax/10000
  • Voltage of feeding: 5 ÷ 15V
  • Resistance at input: 700±10Ω
  • Resistance at output: 700±3Ω
  • Compensated margin of temperature: -10ºC a +40ºC
  • Resistance of insulation: >5000M
