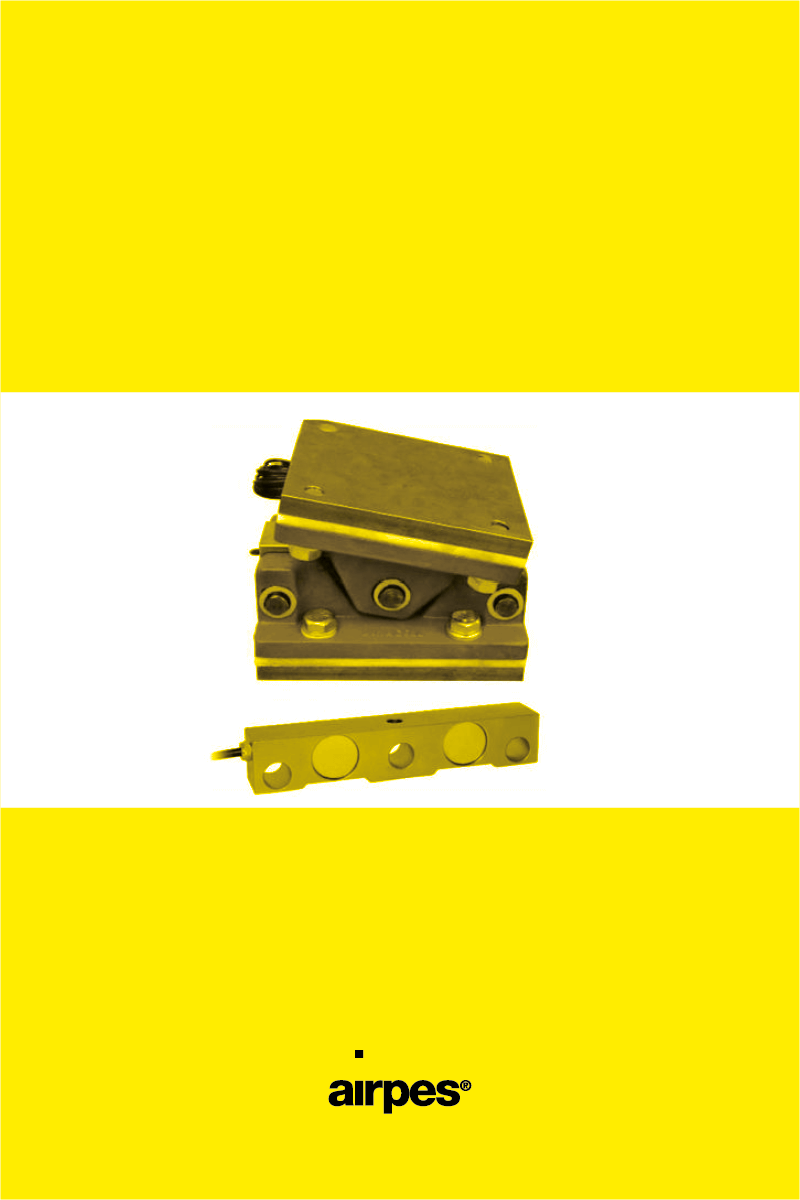

Load cells compression SKP

Description

Load Cells compression SKP especially designed for the control of the charge in silos.

Features

Capacities of 1000, 2000, 3000, 4000, 4500, 5000, 6000 Kg.

Cells especially designed for the control of the charge in silos.

Includes an anti –capsizing support.

These double cutting cells are made of alloyed steel or stainless steel.

They hold a low-profile support, treated with highly corrosion-resistant paint.

Benefits

Sensitiveness 2mV/V
Adjustment tolerance sensitiveness 0.1%
Adjustment zero tolerance <1% F.E.
Excitation tension ≤24V
No linearity <0.015% F.E.
No repeatability <0.012% F.E.
Combined error <0.029% F.E.
Hysteresis <0.012% F.E.
Fluency in 30 minutes <0.025% F.E.
Temp. effect and sensitiveness <0.023% F.E. Protection IP 65



Temp effect at zero <0.016%/5ºC
Compensated temperature margin -10ºC/+40ºC
Entry resistance 760Ω±10Ω
Exit resistance 700Ω±3Ω
Insulation resistance (V. Test=100V) >5000 10’Ω
Maximum working charge 150% F.E.
Charge limit without losing characteristics 200% F.E.
Breaking charge >300% F.E.
Cable (length of 8 metres) Flexible 6×0.25mm
